High Efficiency Fuel Heat Transfer Oil Furnac Easy Installation High Thermal Efficiency

Product Categories
Zhangjiagang Wilford Thermal Co.,Ltd.
Contact Now

High Efficiency Fuel Heat Transfer Oil Furnac Easy Installation High Thermal Efficiency

Brand Name : WILFORD

Model Number : YY(Q)W

Certification : CE

Place of Origin : China

MOQ : 1 stand

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 10 stand/stands per Month

Delivery Time : 15-20 working days

Packaging Details : Export wooden Packing

Rated thermal power : 850KW

Total heating capacity : 750000kcal

Heating efficiency : 90%

Design pressure : 1Mpa

DN of oil outlet : 100DN

Total weight of equipment : 4500kg

Contact Now

High Efficiency Industrial Thermal Oil Heater For Drying

Product introduction

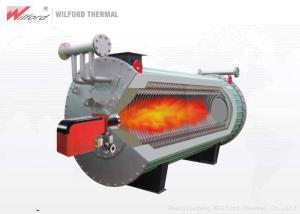

  • This is a fuel (gas) heat transfer oil furnace with a long service life.

  • The heated surface is composed of inner, middle and outer disc tubes, which together form a convective heating surface.

  • The unique structure makes its thermal efficiency more than 100%.

  • It can precisely control the temperature of the heat transfer oil outlet to obtain a temperature of 320 °C.

  • The operation of the boiler is automated, effectively avoiding misuse, safety and efficiency.

  • The whole boiler is quick-loading and easy to install.


Parameter

Description Unit 600 850 1200 1400 1800 2400 3500 4100 6000
Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q) Y(Q)
Rated thermal power (KW) KW/104kcal 600/50 850/75 1200/100 1400/125 1800/150 2400/200 3500/300 4100/350 6000/500
Heating efficiency (≥%) % 90 90 90 92 92 92 92 92 92
Design pressure Mpa 1 1 1 1 1 1 1.1 1.1 1.1
Medium highest temperature ℃ 350 350 350 350 350 350 350 350 350
Medium capacity of boiler m³ 0.4 0.52 0.76 0.95 1.48 2.1 2.4 2.53 6.1
Medium circulation volume m³/h 80 80 100 100 160 200 200 200 300
DN of oil outlet DN 100 100 125 125 150 200 200 200 250
Whole system installed capacity Oil KW 30 40 40 45 50 70 70 70 150
Gas KW 30 40 40 45 50 70 70 70 150
Total weight of equipment KG 3530 4500 5600 6200 9500 10500 13500 16065 28850
External dimension Length mm 3650 4100 5500 5700 5900 6500 8000 8200 9000
Width mm 1500 1700 2100 2100 2100 2300 2400 2500 3200
Height mm 1870 2100 2400 2400 2550 2750 2900 3000 3600
Transport dimension Length mm 3250 3800 4600 4850 5100 5800 6800 7200 7800
Width mm 1500 1700 2100 2100 2100 2300 2400 2500 3200
Height mm 1870 2100 2400 2400 2550 2750 2900 3000 3600


Advantage

1 . YYQW is a heat transfer oil furnace


2 . Can achieve continuous heat transfer


3 . Radiant heating surface is the inner coil


4 . The Chinese and foreign coils constitute a convective heating surface


5 . Thermal efficiency up to 100%


6 . Dynamic human-machine interface interaction, real-time monitoring
